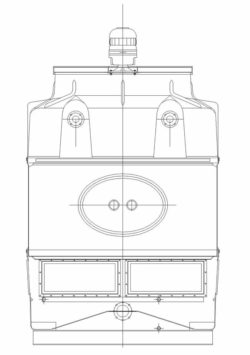

EWK

Model	* Dissip. (kW)	Dry Weight (kg)	Service Weight (kg)	Fan Power (kW)	Length (mm)	Width (mm)	Height (mm)	Dim. Drawing	Plane DWG	Technical Features
EWK 036/06	46	51	115	0.37	720	615	1745	Open	Download	[-]
EWK 064/09	103	126	235	0.55	999.5	832	2225	Open	Download	[-]
EWK 100/09	174	164	362	1.1	1300	1030	2641	Open	Download	[-]
EWK 144/09	260	218	490	2.2	1395	1269	2825	Open	Download	[-]
EWK 225/09	407	355	876	3.0	1690	1557	3100	Open	Download	[-]
EWK 324/09	581	466	1103	4.0	1971	1850	3425	Open	Download	[-]
EWK 441/09	785	633	1595	5.5	2330	2150	3459	Open	Download	[-]
EWK 680/09	1234	1016	3347	7.5	3395	2381	4550	Open	Download	[-]
EWK 900/09	1690	1131	3917	11.0	4415	2093	4485	Open	Download	[-]
EWK 1260/09	2192	1940	6516	15.0	4285	3395	4820	Open	Download	[-]
EWK 1800/09	3150	2609	101434	22.0	4609	4300	4873	Open	Download	[-]
* Heat rejection at the following conditions: Tin: 35,0 ºC, Tout: 30,0 ºC, Twb: 24,0 ºC

Open Circuit

Compact open cooling towers pre assembled at factory

Open Circuit

Compact Open Cooling Towers Pre-Assembled At Factory

View Product

- Compact Polyester Casing
- Plastic Internals for complete corrosion resistance
- Low Energy Consumption
- Easy Maintenance
- Broad Range (From 4 to 500 m^3/h)
- Modular Design
- Film flow and Splash Packings
- DOWNLOAD Assembly and Operation Manual
- DOWNLOAD Product Catalogue
- DOWNLOAD Sound Levels
- DOWNLOAD Nozzel Pressure Drop
1. Sound Attenuator.
2. Access ladder & Hand rail to the fan motor.
3. Vibration Switch.
4. Winter Pack (Thermostat & immersion heater)
5. Water treatment systems (Dosing, bleed)
6. Variable speed drives. Control panels
Evaporative cooling towers are the most energy efficient means of cooling water. Hot process water or condenser water from a chiller enters the distribution system at the top of the cooling tower and falls by gravity in counter-flow to the air being drawn or forced through the cooling tower by the fan. As the air passes the water a small proportion is evaporated cooling the remaining water which is collected in the cooling tower sump. The cooled water is then returned to the process or chiller.

The difference between the required cold water temperature and the wet bulb temperature (called the approach temperature), is significant in determining the size of the tower. The smaller the approach the larger the required heat exchange surface. The approach temperature must be at least 3-4 °C.

The heat exchange surface known as packing provides close contact between the air and water in open towers. High efficiency film packings provide a large surface area over which the cooling water is spread increasing the evaporative cooling effect. Splash packings can be selected for applications where the water quality is poor.

Closed Circuit

EWK-I

Closed Circuit

Closed Circuit Cooling Towers With External Stainless Steel Heat Exchanger

View Product

- FGRP Casing and stainless steel plate heat exchanger
- Direct driven fan motor (no pulleys and belts)
- Total corrosion resistance
- Easy cleaning
- Easy installation
- DOWNLOAD Assembly and Operation Manual
- DOWNLOAD Product Catalogue
- DOWNLOAD Sound Levels
- DOWNLOAD Nozzel Pressure Drop
1. Sound Attenuator.
2. Access ladder & Hand rail to the fan motor.
3. Vibration Switch.
4. Electric water control level in the Basin .
5. Winter Pack (Thermostat & immersion heater)
6. Variable speed drives, control cabinets.
7. Water treatment systems (Dosing, bleed)
The fluid to be cooled (usually water) flows through the water passages of the stainless steel plate heat exchanger without coming into direct contact with the external air, preventing dirt or pollution from entering the primary water circuit. The heat is transmitted from the fluid through the wall of the heat exchanger plates to the cooling water from the tower, which is being continuously circulated through the heat exchanger.

The fan at the top of the tower draws air through the tower in counter-flow to the water, thereby evaporating a small amount of the re-circulating secondary circuit water. The evaporative process causes cooling of the remaining water and the heat is released to atmosphere,. The remaining water is re-circulated by the spray water pump from the basin to the spray nozzles. A small quantity of heat is transmitted by sensible heat transfer to the external air, in a similar manner to an air cooler.

Closed Circuit

EWK-C

Closed Circuit

Closed Circuit Cooling Towers With Internal Galvanised Steel Coil.

View Product

- Low sound level
- Low height
- No vibration transmission
- FRP Casing, reduced maintenance and total corrosion protection
- Plastic internals
- DOWNLOAD Assembly and Operation Manual
- DOWNLOAD Sound Levels
1. Sound Attenuator.
2. Access ladder & Hand rail to the fan motor.
3. Vibration Switch.
4. Electric water control level in the Basin .
5. Winter Pack (Thermostat & immersion heater)
6. Variable speed drives.
7. Water treatment systems
Evaporative cooling towers are the most energy efficient means of cooling water. Hot process water or condenser water from a chiller enters the distribution system at the top of the cooling tower and falls by gravity in counter-flow to the air being drawn or forced through the cooling tower by the fan. As the air passes the water a small proportion is evaporated cooling the remaining water which is collected in the cooling tower sump. The cooled water is then returned to the process or chiller.

The difference between the required cold water temperature and the wet bulb temperature (called the approach temperature), is significant in determining the size of the tower. The smaller the approach the larger the required heat exchange surface. The approach temperature must be at least 3-4 °C.

The heat exchange surface known as packing provides close contact between the air and water in open towers. High efficiency film packings provide a large surface area over which the cooling water is spread increasing the evaporative cooling effect. Splash packings can be selected for applications where the water quality is poor.

Evaporative Condenser

EWK-E

Evaporative Condenser

Evaporative Condensers For Refrigerant Gases.

View Product

- Corrosion free
- Reliable operation
- Direct coupled. No belts and pulleys
- Low energy consumption
- HCS coil (High Conductivity System)
- DOWNLOAD Assembly and Operation Manual
- DOWNLOAD Product Catalogue
- DOWNLOAD Sound Levels
1. Sound Attenuator.
2. Access ladder & Hand rail to the fan motor.
3. Vibration Switch.
4. Electric water control level in the Basin .
5. Winter Pack (Thermostat & immersion heater)
6. Variable speed drives
7. Water treatment systems
The refrigerant gas is circulated through the coil whilst the secondary circuit water is sprayed over the external surfaces of the tubes. At the same time, the fan induces airflow through the coil evaporating a small part of water. The process of evaporation causes heat to be extracted from the gas through the wall of the coil tube. This evaporation is owed to the heat obtained from the gas in the heat exchanger, thereby cooling and condensing the gas itself.

EWK evaporative condensers feature high performance coils and corrosion resistant FRP casings. The aerodynamic design of the condenser top casings ensures low energy consumption. The tower design and construction facilitate easy maintenance.

Open Circuit

EWK-D

Open Circuit

Low Noise And Low Profile Centrifugal Cooling Towers

View Product

- Low sound level
- Low height
- No vibration transmission
- FRP Casing, for low maintenance and total corrosion resistance
- Plastic internals for complete corrosion resistance
- Modular design
- Integrated frame support
- Epoxy coated fans
- DOWNLOAD Assembly and Operation Manual
- DOWNLOAD Product Catalogue
- DOWNLOAD Sound Levels
- DOWNLOAD Nozzel Pressure Drop
1. Sound attenuators for air inlet and outlet.
2. Winter Pack (Thermostat & immersion heater)
3. Variable speed drives
4. Dosing systems for water treatment
Evaporative cooling towers are the most energy efficient means of cooling water. Hot process water or condenser water from a chiller enters the distribution system at the top of the cooling tower and falls by gravity in counter-flow to the air being drawn or forced through the cooling tower by the fan. As the air passes the water a small proportion is evaporated cooling the remaining water which is collected in the cooling tower sump. The cooled water is then returned to the process or chiller.

The difference between the required cold water temperature and the wet bulb temperature (called the approach temperature), is significant in determining the size of the tower. The smaller the approach the larger the required heat exchange surface. The approach temperature must be at least 3-4 °C.

The heat exchange surface known as packing provides close contact between the air and water in open towers. High efficiency film packings provide a large surface area over which the cooling water is spread increasing the evaporative cooling effect.

Open Circuit

EWK-DC

Open Circuit

Closed Circuit Cooling Towers With Internal Galvanised Steel Coil.

View Product

- Low sound level
- Low height
- No vibration transmission
- FRP Casing, free of maintenance and corrosion
- Fully assembled in our factory
- Integrated frame support
- CoilSulzer H.C.S (High Conductivity System)
- Modular construction
- Epoxy coated fans
- DOWNLOAD Assembly and Operation Manual
- DOWNLOAD Sound Levels
1. Sound attenuators for air inlet and outlet.
2. Electric water control level in the Basin.
3. Winter Pack (Thermostat & immersion heater).
4. Variable speed drives.
5. Water treatment dosing systems
6. Switch level control
The fluid to be cooled (usually water or glycol water) flows through the tubes of the coil without coming into direct contact with the external air, preventing dirt or pollution from entering the primary water circuit. The heat – from the fluid is conducted through the tube walls to the water, which is sprayed over the coil.

The fan at the base of the tower forces air in counterflow to the water, causing a small proportion of the spray water to be evaporated. The evaporative process cools the remaining water causing heat from the coil surface to be transferred from the spray water to the atmospheric air passing through the tower. The remaining water is re-circulated by the spray water pump from the basin to the spray nozzles. (Secondary circuits). A small quantity of heat is also transmitted by sensible heat exchange to the atmospheric air in a similar manner to an air cooler.

Open Circuit

EWB

Open Circuit

Open Cooling Towers For Big Volumes And Assembled On Site.

View Product

- Modular design
- Corrosion free
- Industrial applications
- Easy maintenance
- Big capacity (500 – 10.000 m3/h)
- DOWNLOAD Assembly and Operation Manual
- DOWNLOAD Product Catalogue
- DOWNLOAD Sound Levels
- DOWNLOAD Nozel Pressure Drop
1. Sound Attenuator.
2. Access ladder & Hand rail to the fan motor.
3. Vibration Switch.
4. Frequency converter
5. Basin in FGRP
Cooling towers bring a cold and dry air mass in counter-flow to hot water that comes from an industrial or air conditioning process. Part of this water evaporates, cooling the rest. The necessary heat for this is approx.597 Kcal/liter. The cold water produced is returned into the process to re-initiate the cycle. The equipment with this evaporative refrigeration principle are very important for energy efficiency in industrial processes.

The difference between the required cold water temperature and the wet bulb temperature (called cooling limit distance), is significant to determine the size of the tower. The smaller the cooling distance is, the bigger the interchanging surface is needed. The limit distance must be of at least 3-4º C.

In open cooling towers there is a close contact water-air, which is bigger thanks to the fill packings, that provide a big surface of exchange, improving performance and evaporation. There are different kinds of fill packing for different water quality.

Closed Circuit

Close-circuit-adiabatic-water-coolers-Legionella-free443244

EWK-A

Closed Circuit

Closed Circuit Adiabatic Water Coolers, Legionella Free

View Product

- FGRP casing and Cu-Al heat exchanger
- EC fans with high efficiency
- Water treatment not necessary
- Aerosol free
- Two full automatic working options
- DOWNLOAD Assembling and Operation Manual
- DOWNLOAD Product Catalogue
- DOWNLOAD Sound Levels
1. Coated fan
2. Master control
3. Temperature sensor control

Open Circuit

EWK-MODUCELL

Open Circuit

Modular cooling tower for large volumes, pre-assembled from the factory.

View Product

- Broad Range: From 500 to 10.000 m3/h)
- Modular design in GRP
- Corrosion free
- Standard Fill materials in Polypropylene with anti-legionella treatment (SANIPACKING®)
- Industrial applications
- Easy maintenance
- German engineering
- Materials highly resistant to all aggressive conditions, as well as to extreme temperatures
- Pre-assembled at the factory
- Three different options:
1. A) WITH complete integrated sump and inlet louvers
2. B) WITHOUT integrated sump but WITH inlet louvers
3. C) WITHOUT integrated sump and WITHOUT inlet louvers
- DOWNLOAD NOZZLE PRESSURE DROP
- DOWNLOAD SOUND LEVEL
- PRFV with SANIPACKING® treatment casing
- Access ladder & Hand rail to the fan motor
- Access door in Polypropylene
- Vibration switch for ventilation equipment
- Electric motor frequency converters
- PTC sensor for the motor
- Exhaust silencer
- Low noise fan
- Sensors for the level of water in the basin
- Winter pack (Thermostat & Immersion heater) to protect from low temperatures
- Attenuators of noise from the drops in the basin
- SMART Cooling Tower
Cooling towers bring a cold and dry air mass in counter-flow to hot water that comes from an industrial or air conditioning process. Part of this water evaporates, cooling the rest. The necessary heat for this is approx. 597 Kcal/litre. The cold water produced is then returned into the process to re-initiate the cycle.

The difference between the required cold-water temperature and the wet bulb temperature (cooling limit distance), is significant to determine the size of the tower. The smaller the cooling distance is, the bigger the interchanging surface is needed. The cooling limit distance must be at least 3-4º C. In open cooling towers there is a close contact water-air, which is bigger thanks to the fill packing, providing a large heat exchange surface, improving performance and evaporation.
